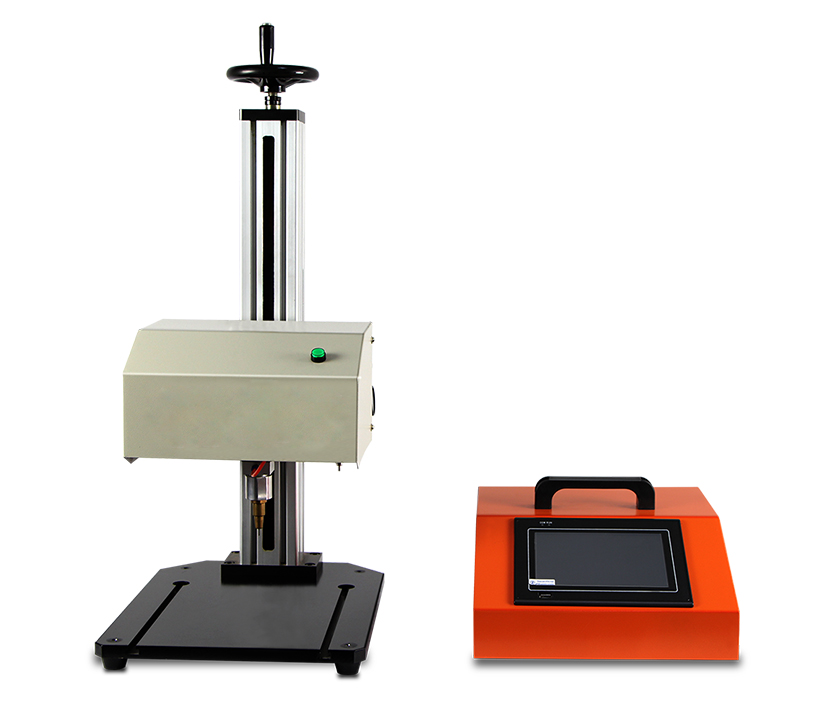

LCD Control Flat and Rotary Pneumatic Dot Peen Marking Machine for Metal And Hard Plastic

Product Hightlights

Pneumatic Dot Peen Marking Machine 1.lifting handle It is for moving the marking head up and down,clockwise rotation for rising up,conterclockwise for going down 2.The marking depth Aluminum marking under 2.5Mpa,the distance between pinhead and workpiece affects the marking depth. If the same distance,The higher air pressure,the deeper marking . Marking set: For aluminum workpiece,the working air pressure 2Mpa~3Mpa,distance 2mm~7mm. For steel work piece,the working air pressure  2Mpa~4.5Mpa,distance 2mm~10mm. For copper workpiece,the working air pressure 2Mpa~3Mpa,distance 2mm~7mm. For iron workpiece,the working air pressure 2Mpa~4.5Mpa,distance 2mm~10mm. 3.Marking button Note:Pressing this button will start marking the currently marked text

Specifications

Graphic Format Supported:ported: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:2 years

Marking Area:ea: 200x100/300x200/400x300mm(customized)

Marking Speed:80mm/s (4-8 number or words of 3 mm size/s)

Marking Depth:    0.01mm-2.0 mm (depend on material)

Applicable Material:Metal

LCD Control Flat and Rotary Pneumatic Dot Peen Marking Machine for Metal And Hard Plastic

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case.    LCD Control Flat and Rotary Pneumatic Dot Peen Marking Machine for Metal And Hard Plastic

Lead Time :

Quantity(Sets) 1-3  4-5       >5

Est. Time(days) 5 7  To be negotiated
