Jewelry Fiber Laser Cutting Machine for Silver Gold Steel Technique Parameters
Product Name | Fiber Laser Cutting Machine | |||
Fiber Laser Cutting Power | 500W | 700W | 1000W | 2000W |
Fiber Laser Source | IPG, N-light, Max, Raycus | |||
Fiber Laser Cutting Area | 600*600mm (600*400mm, 600*800mm, 1000*1000mm, 3000*1500mm) | |||
Laser Cutting Head | Raytools | |||
Control System | Cypcut CNC Control System | |||
Guiderail Brand | HIWIN | |||
Working Voltage | 220V or 380V / 50HZ or 60HZ | |||

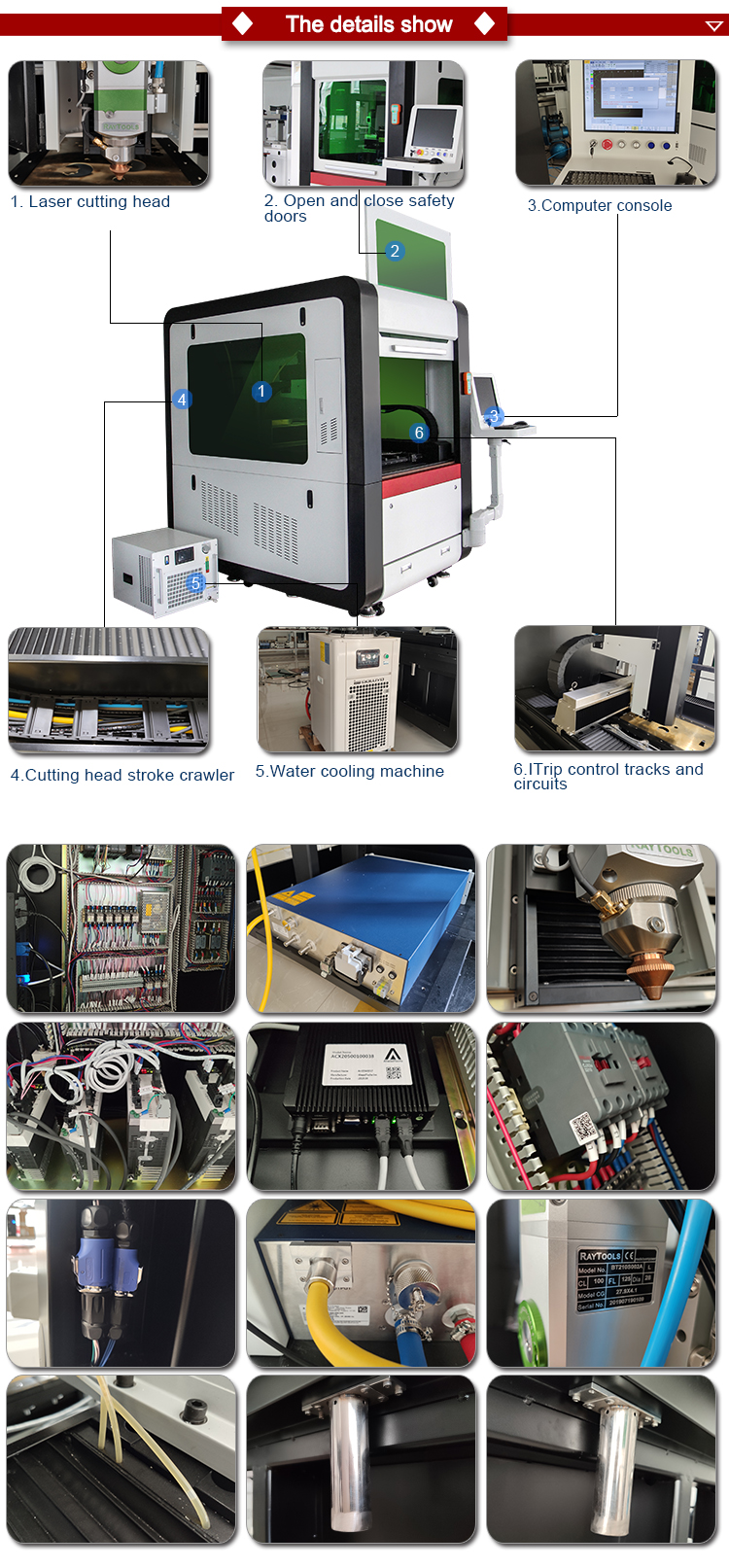

Jewelry Fiber Laser Cutting Machine for Silver Gold Steel Main Parts Introduction
1). Laser Cutting Head: Import fiber laser cutting head with dynamic autofocus function, keep same distance according to metal plate and cutting head.
2). Working Platform: A drawer under the working platform. After metal sheet cutting, the small pieces will fall down into the lower drawer for easy collecting.
3). Cutting Observation Window: The green glass cover window can filter the laser beam, no eye injury and no odor. Environmentally friendly and beautiful.
4). PC Control System: Humanized separate PC control system, PC screen can be rotated 180 degree.
Japan import Servo Motor & Driving System: Extreme precise positioning;Make moving positioning mechanism operate smoothly;Reliably and free of maintenance.
5). Double Rack: Adopt double-drive rack transmission system, to ensure the cutting precision and fast speed.
6). Control System: Adopt NC Studio control system, have powerful edit function, can meet a wide range of cutting needs.
