Product Hightlights

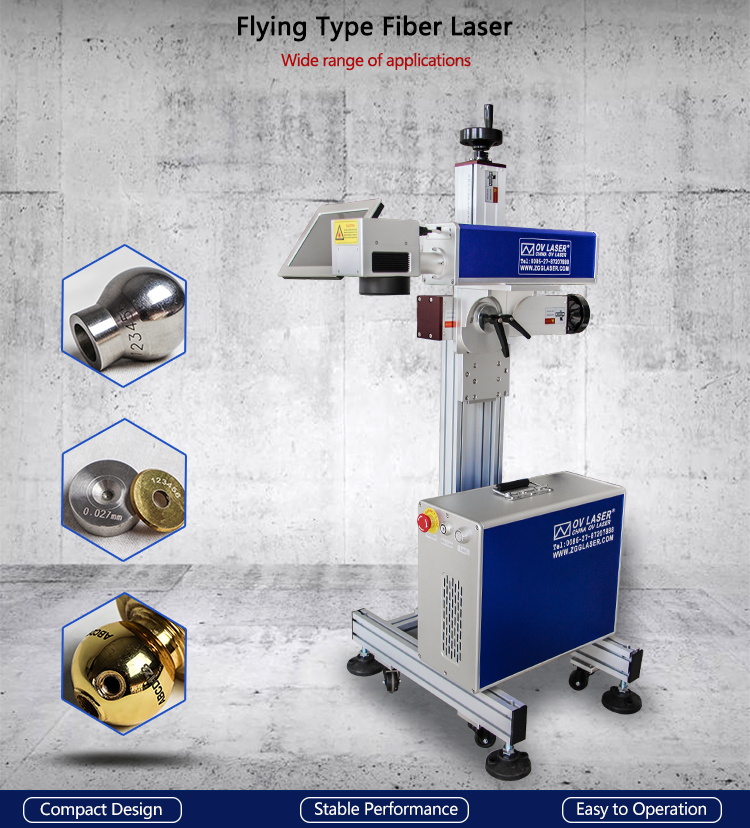

Flying Online Fiber Laser Marking Machine 1.Equipped with original EZCAD Design and graph will be converted into digital signals by laser marking control card transmitted into galvanometer scanning head 2.Galvanometer scanning head Higher scanning speed and marking accuracy 3.LCD computers that can be moved on demand 4.Portable and mini type,easy carry The handle can adjust the angle of the lens up and down,the horizontal column can adjust the length of the lens before and after ,easy to use 5.Aluminum Worktable Can be equipped with fixed workbench/pipeline 6.Emergency stop,main power key switch ,laser switch 7.Column height can be adjusted freely according to requirements
Specifications
Graphic Format Supported:ported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Marking
Condition:New
CNC or Not:Yes
Cooling Mode:Air Cooling
Control Software:EZCAD
Place of Origin:Hubei, China (Mainland)
Brand Name:OV Laser
Certification: CE, ISO, SGS, FDA
Warranty:3years
Laser Source:RAYCUS
Marking Area:50mm*50mm-300mm*300mm
Laser Wavelength:1064nm
Marking Speed:8000mm/s
Applicable Material: Metal &Some nonmetals
Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH
Laser Repetition Frequency: 20kHZ - 200kHZ
Field Lens:Singapore Wavelength
Supply Ability
500 Unit/Units per Month 20w fly fiber laser marking machine
Packaging & Delivery
Port
Wuhan port or any other China port
Lead Time :
Quantity(Sets) 1-1 3-5 >5
Est. Time(days) 7 10 To be negotiated
| Model | OV SF-30 |
| Wave length of laser | 1064nm |
| Laser repetition frequency | 20kHz~200kHz |
| Laser power | 20W/30W/50W/100W |
| Marking area | 50mm*50mm-300mm*300mm |
| Laser source | RAYCUS, IPG |
| Laser head | SINO-Galvo |
| Field lens | Singapore wavelength |
| Control system | JCZ- Ezcad |
| Working accuracy | 0.001mm |
| Marking speed | 8000mm/s |
| Repeated accuracy | 0.003mm |
| Cooling ways | Air cooling |
| Power supply | AC220V/50HZ/1.5KVA |
| Process Material | All kinds of metal and part of Non-metal Materials |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| Package | Wooden case for export |
