Product Hightlights

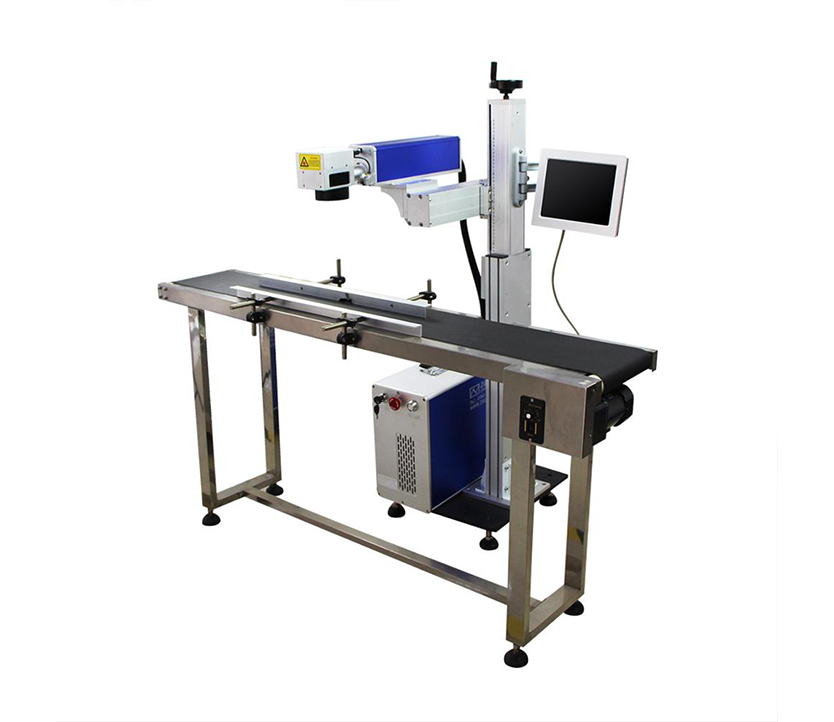

Flying Online Fiber Laser Marking Machine 1.Equipped with original EZCAD Design and graph will be converted into digital signals by laser marking control card transmitted into galvanometer scanning head 2.Galvanometer scanning head Higher scanning speed and marking accuracy 3.LCD computers that can be moved on demand 4.Portable and mini type,easy carry The handle can adjust the angle of the lens up and down,the horizontal column can adjust the length of the lens before and after ,easy to use 5.Aluminum Worktable Can be equipped with fixed workbench/pipeline 6.Emergency stop,main power key switch ,laser switch 7.Column height can be adjusted freely according to requirements
Specifications
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Marking
Condition:New
CNC or Not:Yes
Cooling Mode:Air Cooling
Control Software:EZCAD
Place of Origin:Hubei, China (Mainland)
Brand Name:OV Laser
Certification: CE, ISO, FDA
Warranty:2 years
Laser Source:RAYCUS
Marking Area:110mm*110mm--- 300mm*300mm
Laser Wavelength:1064nm
Marking Speed:7000mm/s
Applicable Material: Metal &Some nonmetals
Power Supply:AC220V +10% / 50HZ or 60HZ
Laser Repetition Frequency: ≤30KHZ
Field Lens:Singapore Wavelength
Supply Ability
100 Unit/Units per Month 20w fly fiber laser marking machine
Packaging & Delivery
30w 50w Cheap new closed fiber laser marking machine for steel metal jewelry Export wooden case for factory price China 20w 30W mopa mini portable fiber laser marking machine for metal and stainless steel
Port
Wuhan port or any Chinese port
Lead Time :
Quantity(Sets) 1-1 2-2 3-5 >5
Est. Time(days) 3 6 10 To be negotiated
