Fiber Laser Marking Machine Advantages:

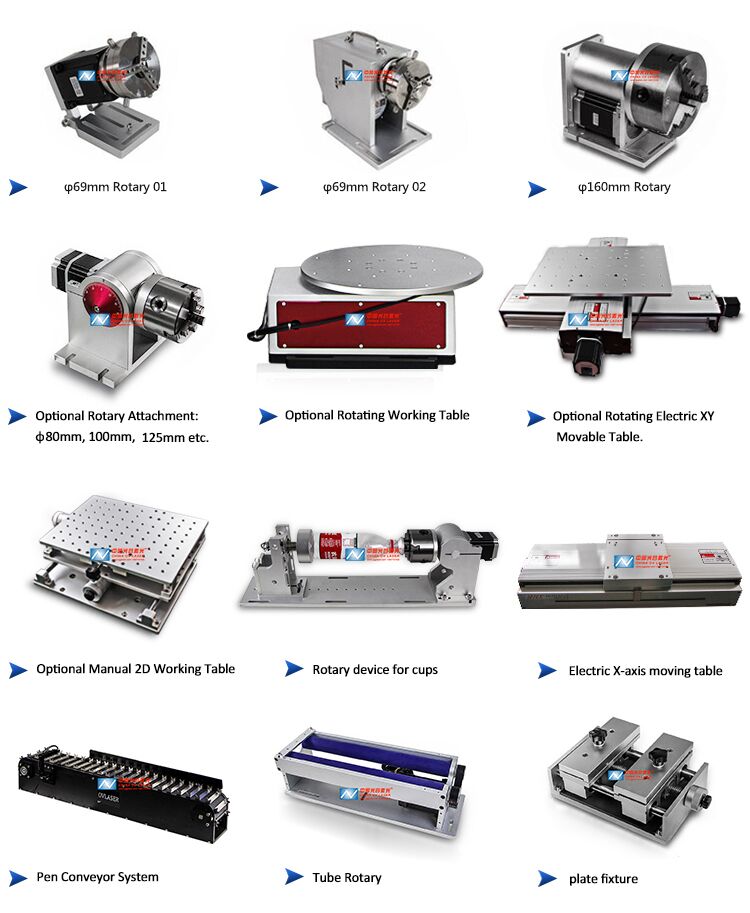

1.Marking Area:110x110mm,175*175mm,200*200mm, 300*300mm.However, larger working area can be realized by equipped with electric xy moving platform 300*400mm, 300*500mm etc.

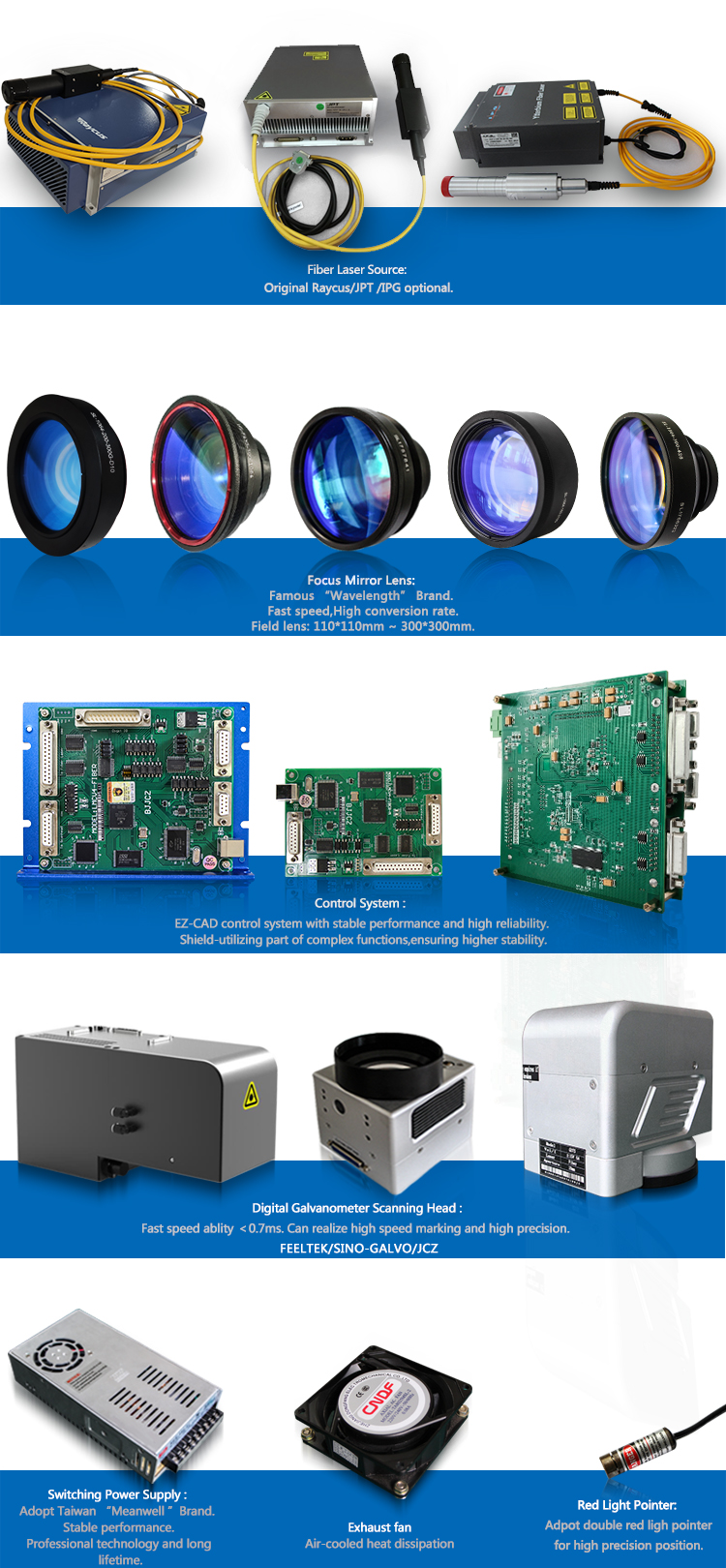

2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect.Together with the stable precision slider, the fiber laser marker is especially good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables.
6. No need to adjust the laser path.
7. Free Maintenance.
8. Low Power Consumption: low cost, only 0.5kw/hour.
9. Easy operation: We will supply the installation training video for our dear customers to install laser marking machine.

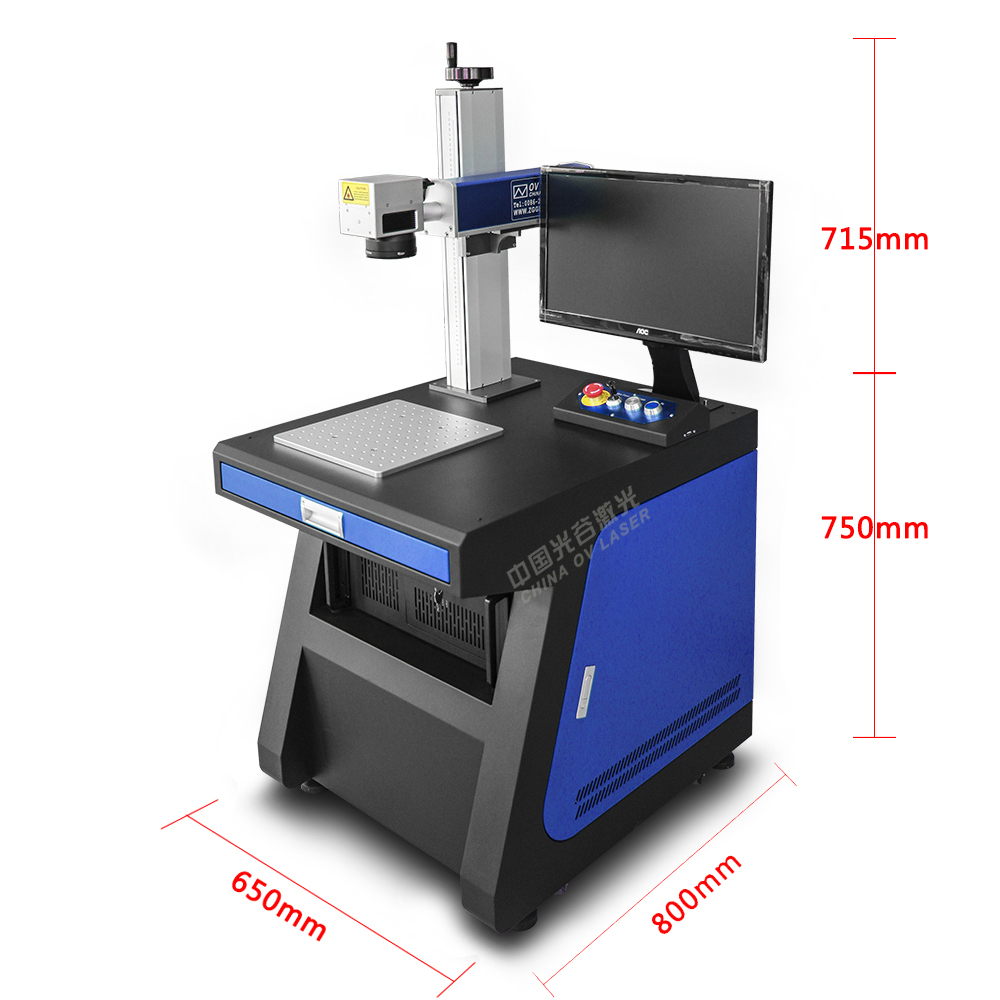

Mopa Fiber Laser Marking Engraving Machine - Technical Parameters
Product Name | Fiber Laser Marking Machine | Cooling Mode | Air Cooling |
Model | OV SF-100 | Max Marking Speed | 7000mm/s |
Laser Source | JPT | Mininum Line Width | 0.015mm |
Power | 100W | Mininum Character | 0.2mm |
Laser Wavelength | 1064nm | Pulse Frequence | 1KHZ-4000KHz(JPT) |
Filed Lens Brans | Nanjing wavelength | Operation Environment | Working temperature: 0°-40°, Storage temperature: -10°-60°. Humidity: 30% - 85%. |
Marking Area | 110*110mm | Power Supply | AC110V /220V +10% / 50HZ or 60HZ |
Control Card | Original EZCAD from JCZ brand | Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
