What Can Fiber Laser Engraving Machine do?

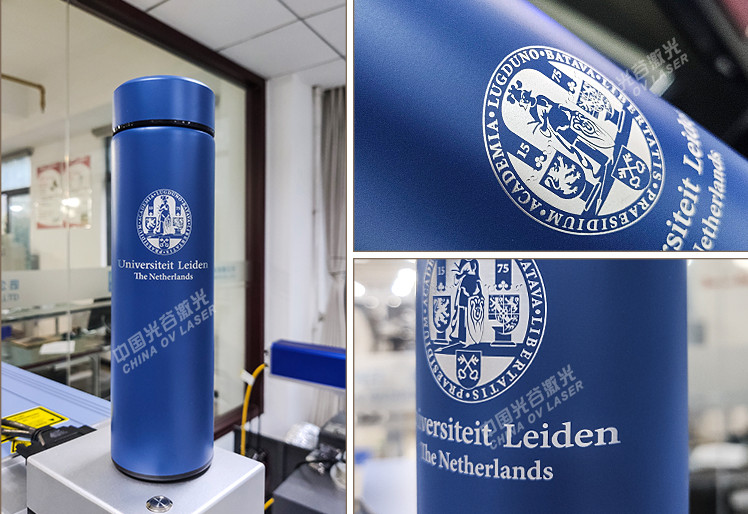

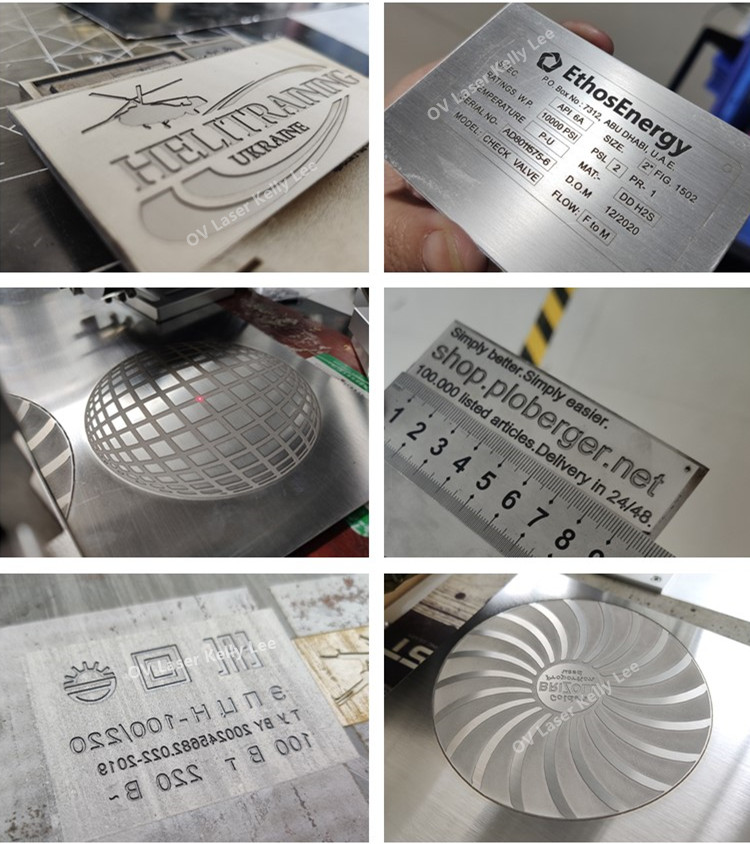

One fiber laser marking machine with 4 functions: Fast marking on materials surface, deep engraving metal,cutting jewelry names, 3D relief engraving metal. Suits for engraving logo, text, time, serial, part number, QR code, barcode, 2D code, bitmap, pictures and images on almost all metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs, pens, auto parts, knives, metal tools and machinery parts etc.Flexible to work with electric xy moving table to get large format engraving area, work with rotary fixture to mark cylinder objects.

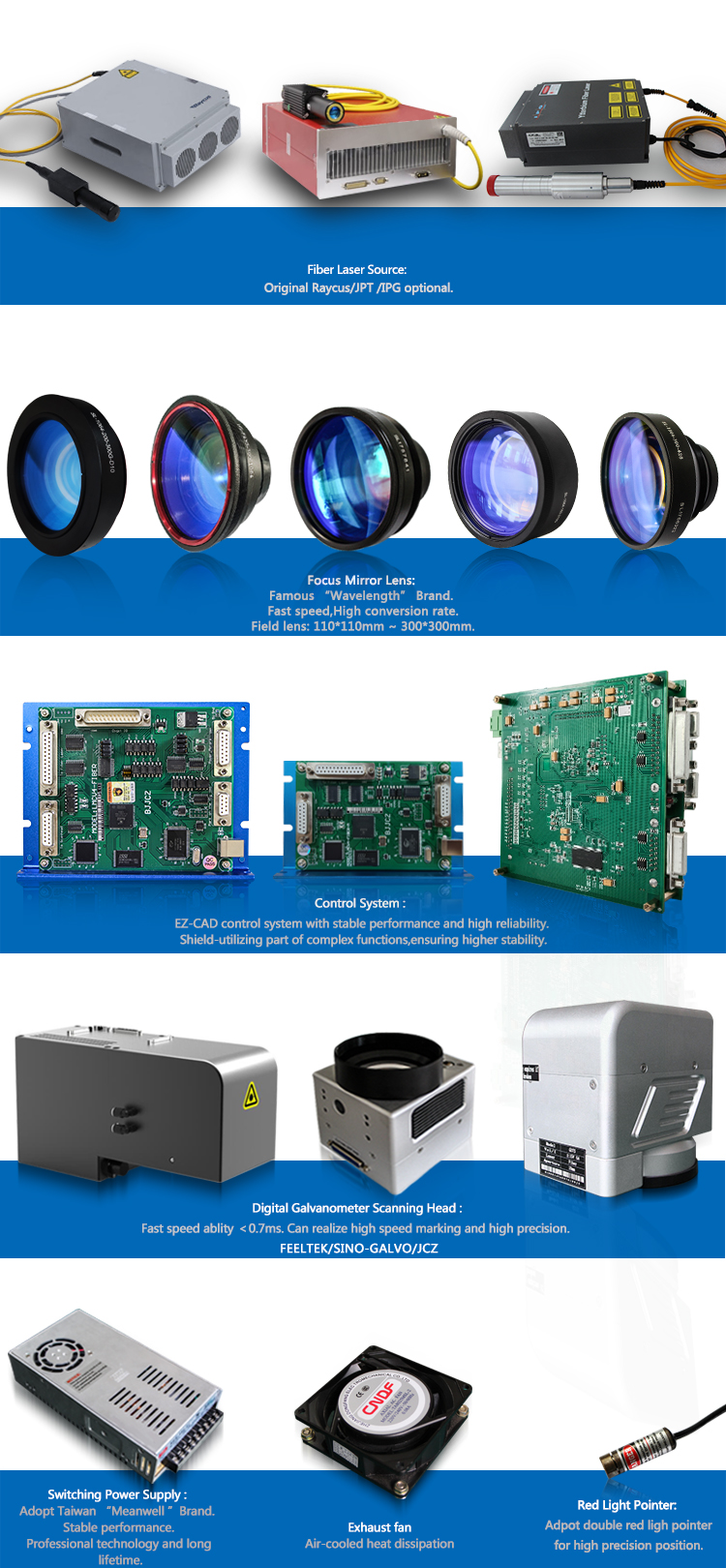

Main Parts of Fiber Laser Engraving Machine
· Laser Source: Raycus / JPT / IPG / MAX brand.
· Software: EZCAD2 or EZCAD3.0
· Laser Power: 30w 50w 60w 80w 100w 120W
· Marking Area: 110*110mm, 150*150mm, 175*175mm,200*200mm, 300*300mm.
· Galvo Head: OV Laser OV8810 / Sino Galvo SG 2206 / Sino Galvo SG7220
· Column Stand: 50cm / 68cm / 80cm / 100cm etc.
· Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
· More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor table / Purifier / Electric XY table.
Specifications for Fiber Laser Engraving Machine
Product Name | Fiber Laser Engraving Machine | Cooling Mode | Air Cooling |
Product Series | OV SF-Series | Max Marking Speed | 7000mm/s |
Laser Source | Raycus / JPT / IPG | Mininum Line Width | 0.015mm |
Power | 30W/50W/ 60W/80W/100W /120W | Mininum Character | 0.2mm |
Laser Wavelength | 1064nm | Pulse Frequence | 30 KHz - 100 KHz (Raycus) 1KHz - 4000KHz (JPT) |
Max Marking Area |
300*300mm | Operation Environment | Working temperature: 0°-40°, Storage temperature: -10°-60°. Humidity: 30% - 85%. |
Cooling Model | Air Cooling | Power Supply | AC110V /220V +10% / 50HZ or 60HZ |
Control Software | EZCAD3.0 /EZCAD2.0 | Operation System | Win XP / 7 / 8 / 10/11 (64 bits) |
