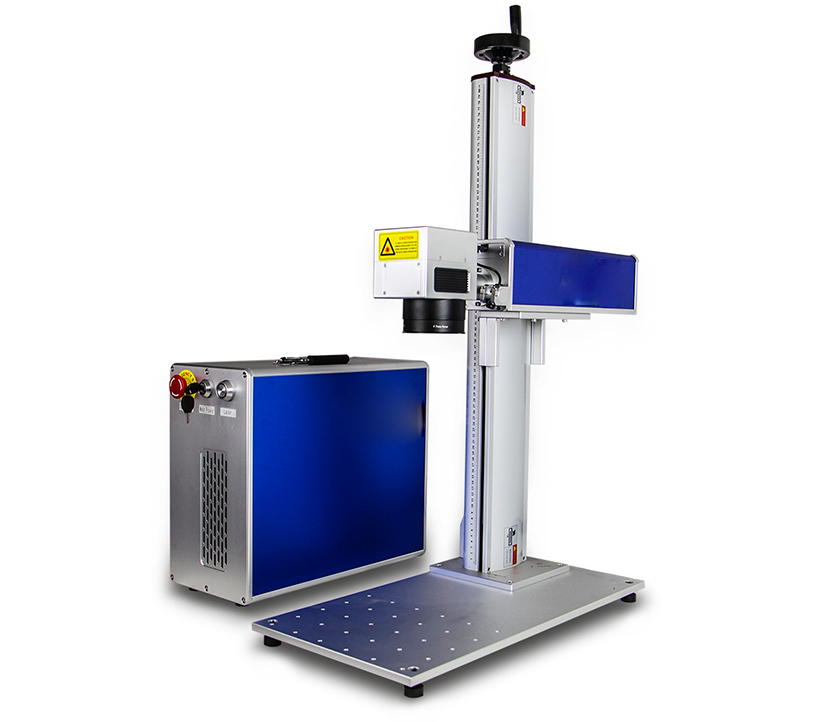

50w Fiber Laser Marking Machine for metals

Features:

1. Environmentally friendly: No need water chiller to cool, small size small occupation, can be easily installed in many places.


2. Permanent marking: It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.


3. Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry. Marking software c/w machine. Minimal part replacement


4. High efficiency and High Precision: Computer operated, the Marking speed is up to 7000mm/s and Minimum line width is up to 0.01mm..


5. Full supporting: Warranty three years. Full operator training. Our engineers providing a solution according to your application. Engineers available service machinery overseas.


6. High quality: CE & ISO & BV & FDA approved, imported core spare parts like German IPG fiber laser.


Share
  • product details
  • video
Features:

Product Hightlights

Fiber laser marking machine is with the best advanced laser technology, the basics for this marker is just like burning leaves with magnifying glass. Through a simple lens which is called field lens or F theta lens, the fiber laser coming from a YAG or fiber laser source, the laser light not like sunlight, it only has a property of being monochromatic, meaning that the laser light is all the same color or wavelength which is 1064 μm. The laser beam can be focused on the material anywhere within plane defined by the F theta lens. Usually the metals can absorb the wavelength of fiber laser, and there is a good match after marking. Different materials are supposed to be tested which laser is suitable for it.

Specifications

Graphic Format Supported:ported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE,SGS, FDA

Warranty:3 years

Laser Source:Raycus

Marking Area:70*70/110*110/140*140/175*175/300*300mm(optional)

Laser Wavelength:1064±10nm

Marking Speed:≥7000mm/s

Marking Depth:0 ~0.5mm

Applicable Material: Metal

Power Supply:AC110V±10%60HZ/AC220V±10%50HZ

Field Lens:Singapore Wavelength

Supply Ability

300 Set/Sets per Month 50w Fiber Laser Marking Machine for Sale

Packaging & Delivery

Package have 3 layers : 1. Outside: choose wood craft cse outside, and it is suitable for custom applyting and cleaning 2. Middle: use EPS foam in the middle to protect machine from shaking during transporting; 3. Inside: Adopt thick plastic to cover the machine and protect it from dust and moisture.

Port

Shanghai

Lead Time :

Quantity(Sets) 1-1  2-2    3-3    >3

Est. Time(days)3 5 8 To be negotiated



Power10W/20W/30W/50W/100W
Laser Wavelength1064μm
Marking Area110mm*110mm, optional 70*70mm, 145*145mm, 175*175mm, 200*200mm, 300*300mm
Marking Depth
Marking Speed7000mm/s
Minimum Line Width0.015mm
Minimum Character0.2mm
Repeated Precision±0.003mm
Controller(Software-EzCAD)JZC from China
Lifespan of Fiber Laser Source100000 hours
Focus Spot Diameter<0.01mm
 System Operating EnvironmentWINDOWS XP/7/8
 Cooling ModeAir Cooling
Working Temperature0℃-40℃
 Voltage220V/50Hz or 60Hz
Power500W
