Product Hightlights

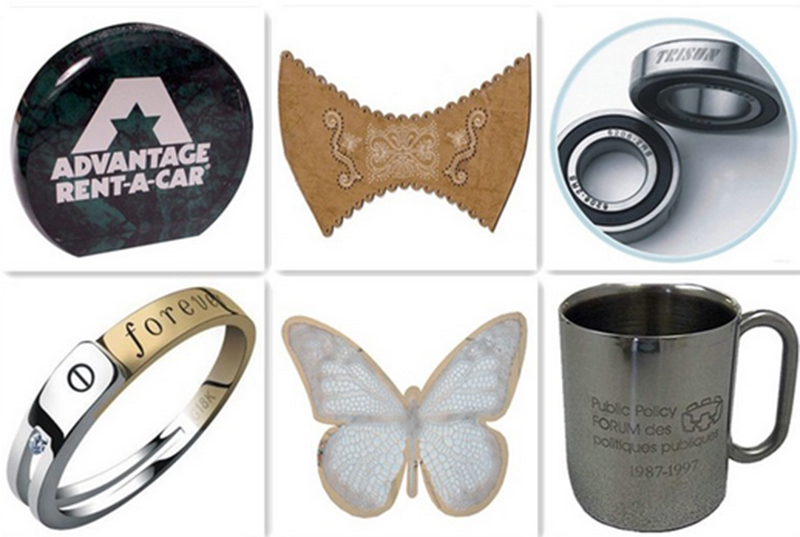

Advantage & Details of our fiber laser marking machine : Our Fiber Marking Machine has an amazing performance for the cost. It is widely used on metals and non-metals, and it can engrave both letters and high-quality images onto your products with speed (7,000mm/s) and accuracy (0.001mm).
Specifications
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Marking
Condition:New
CNC or Not:Yes
Cooling Mode:Air Cooling
Control Software:EZCAD
Place of Origin:Hubei, China (Mainland)
Brand Name:OV Laser
Certification: CE, ISO, SGS, FDA
Warranty:3 years
Laser Source:IPG, RAYCUS
Marking Area:50mm*50mm-300mm*300mm
Laser Wavelength:1064nm
Marking Speed:10000mm/s
Marking Depth: <=5mm
Applicable Material: Metal and some non-metal
Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH
Laser Repetition Frequency:quency:20-100khz
Field Lens:Singapore Wavelength
QR Code Logo Metal Mini Foil 3D Laser Engraving Machine 3D Laser marking Machine With CE
Supply Ability
1000 Set/Sets per Month
Packaging & Delivery
Standard Ply-wooden case for exporting, non fumigation
Port
Wuhan port or any other China ports
Lead Time :
Quantity(Sets) 1-3 4-5 >5
Est. Time(days) 5 8 To be negotiated
laser | Item no. | OV LM-30/50/100 | |
output power | 30W/50W/100W | ||
pulse energy | 1mj | ||
repetitive frequency | 30K-500KHZ | ||
Laser wavelength | 1064nm | ||
Technology | Indicator laser | Red light 655 nm/output 1.0 mW | |
Marking area | Standard | optional | |
110*110mm | 175*175mm/300*300mm 600*600mm/800*800mm | ||
Adjustment depth range | ±20cm | ±20cm | |
Minimum line width | 0.03mm | 0.03mm | |
software | Marking speed | ≤10000m/s | ≤10000m/s |
operating system | Windows XP/7/8/10 | ||
Font support | Ture type,AUTOCAD Single line font,custom | ||
One dimensional barcode | CODE39/CODE128/ITF/CODABAR/EAN/UPC | ||
Two dimensional barcode | QR/PDF417/Datamatrix(ECC200) ect. | ||
File | PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG | ||
Machine | Environmental requirements | Temperature: 10-35℃ Humidity: 5-75% | |
Input | 110V/220V, 50-60Hz | ||
Power waste | ≤1500W | ||
Cooling | air cooling/water cooling | ||
Size | 1400*850*1699mm(For reference) | ||
Control interface | PCI-Express/USB-2.0 option | ||
