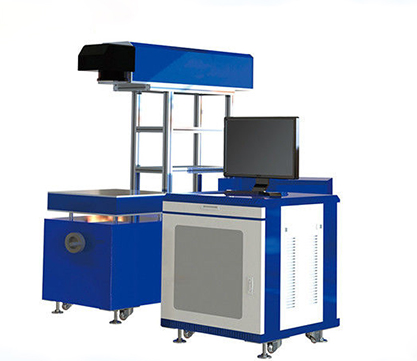

Laser Marking Equipment Label 3D Laser Marker Nonmetal Surface Laser Marking

Fiber laser marking machine Advantage

1) Under operation system: windowns xp , windowns 7 ,windows8

2) Support Characters , digital, series NO, Date codes

3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code, Two-Dimensional bar code , and so on

4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)

5) Common vector images are supported. (ai, dxf, dst, plt…)

6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.

7) Imported fiber laser system

8) Excellent optical mode, long operating life, up to 100,000HS

9) The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W

10) Small size, steady, without maintenance, easy to operate

11) High precision, suited for fine processing on all metal and some non-metal.

12) This machine adapts the fiber laser and has high electro- optical conversion rate, the quality of laser

beam is good,cooling withair- cooling methods, it has smaller shape, low power and much more energy-efficient.

13) Divergent Angle is about a quarter of the pump laser semiconducto, especially mainly used in precise,

fine marking3,low using cost, electro-optic conversion efficiency is up to 30%

Inquire Now Next Product

product details
video

Features:

Product Hightlights

Products features: Marking effect is perfect: it can mark the delicate and intricate designs on the tiny. Long lifetime: the laser generator has a long working time with high reliability, its lifetime is more than 100000 hours, and it is of maintenance – free and consumable free. High efficiency: the speed of marking is very high, its speed is more than 8000mm/s. It can complete the tasks with a high quantity. Whole structure: small volume, easy to carry out. Cheap price:More cheaper price in the same industry.

Specifications

Graphic Format Supported:ported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Hubei, China (Mainland)

Brand Name:OV Laser

Certification: CE, ISO, SGS, FDA

Warranty:2 years

Laser Source:IPG, RAYCUS

Marking Area:50mm*50mm-300mm*300mm

Laser Wavelength:1064nm

Marking Speed:10000mm/s

Marking Depth: <=5mm

Applicable Material: Metal and some non-metal

Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH

Laser Repetition Frequency:quency:20-100khz

Field Lens:Singapore Wavelength

Laser Marking Equipment Label 3D Laser Marker Nonmetal Surface Laser Marking

Supply Ability

500 Set/Sets per Month 3D 50W Dynamic focusing laser Marking Machine

Packaging & Delivery

There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. 3D 50W Dynamic focusing laser Marking Machine Metal Laser marker laser engraving machine for sale

Port

Wuhan port or any other China ports

Lead Time :

Quantity(Sets) 1-3 4-5 >5

Est. Time(days) 5 8 To be negotiated

Laser	Laser Power	30/50W
	Laser Brand	IPG laser
	Laser wave length	10640nm
Galvanometer	High speed Galvo Scanner	China made

	Max speed	≤7000mm/s
Optical Output Data	Marking Area	300*300mm
	Marking depth	0.1~0.5 mm (according to the material)
	Minimum Line width	0.01mm
	Minimum character	0.1mm
Cooling System	Cooling way	water cooling
Power	General Power	4500W
Power	Power Supply	220V/50Hz/1kVA
	Optional device	On-line flying marking, 3D marking,Rotary marking, accord to customer request
