Product Hightlights

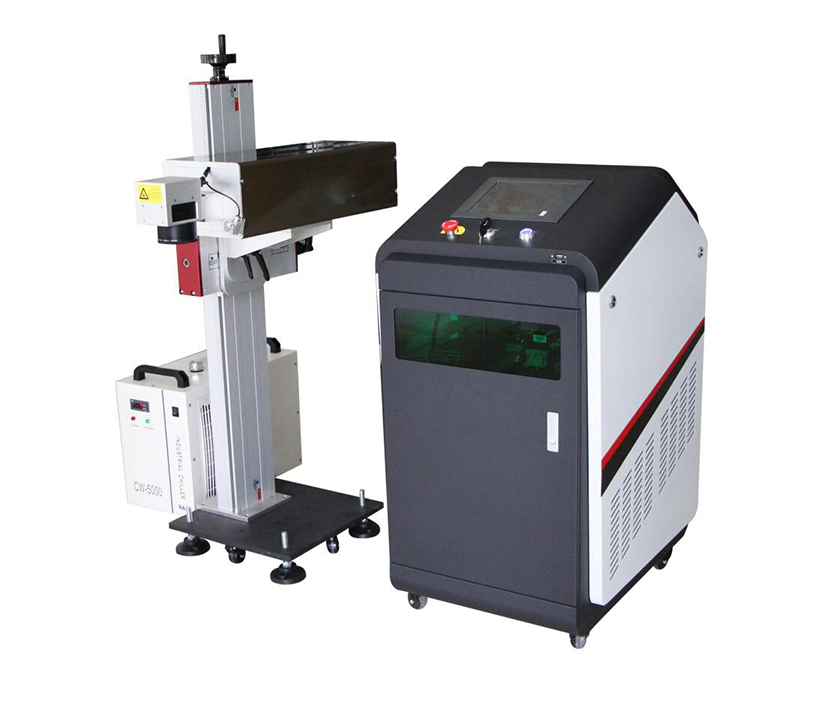

3D fiberlaser marking machine Abrasion and weather-resistant marking quality High precision by synchronously moving all axes Maximum precision by synchronously moving all axes All steel materials, nonferrous metals can be marked.
Specifications
Graphic Format Supported:orted:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Marking
Condition:New
CNC or Not:Yes
Cooling Mode:Air Cooling
Control Software:EZCAD
Place of Origin:Hubei, China (Mainland)
Brand Name:OV Laser
Certification: CE, ISO, SGS, FDA
Warranty:2years
Laser Source:Raycus
Marking Area: 50-300mm
Laser Wavelength:1064nm
Marking Speed:10000mm/s
Marking Depth:<=5mm
Applicable Material:Metal and some non-metal
Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH
Laser Repetition Frequency:20-100KHZ
Field Lens:Singapore Wavelength
Supply Ability
500 Set/Sets per Month
Packaging & Delivery
There are 3 layers of package: waterproof thickening plastic bag; foam to protect fromshaking; solid export wooden case.
Port
Wuhan port or any other China ports
Lead Time :
Quantity(Sets) 1-3 4-5 >5
Est. Time(days) 5 8 To be negotiated
| Laser | Item no. | OV LM-30/50/100 | |
| output power | 30W/50W/100W | ||
| pulse energy | 1mj | ||
| repetitive frequency | 30K-500KHZ | ||
| Laser wavelength | 1064nm | ||
| Technology | Indicator laser | Red light 655 nm/output 1.0 mW | |
| Marking area | Standard | Optional | |
| 110*110mm | 175*175mm/300*300mm 600*600mm/800*800mm | ||
| Adjustment depth range | ±20cm | ±20cm | |
| Minimum line width | 0.03mm | 0.03mm | |
| Software | Marking speed | ≤10000m/s | ≤10000m/s |
| operating system | Windows XP/7/8/10 | ||
| Font support | Ture type,AUTOCAD Single line font,custom | ||
| One dimensional barcode | CODE39/CODE128/ITF/CODABAR/EAN/UPC | ||
| Two dimensional barcode | QR/PDF417/Datamatrix(ECC200) ect. | ||
| File | PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG | ||
| Machine | Environmental requirements | Temperature: 10-35℃ Humidity: 5-75% | |
| Input | 110V/220V, 50-60Hz | ||
| Power waste | ≤1500W | ||
| Cooling | air cooling/water cooling | ||
| Size | 1400*850*1699mm(For reference) | ||
| Control interface | PCI-Express/USB-2.0 option | ||
